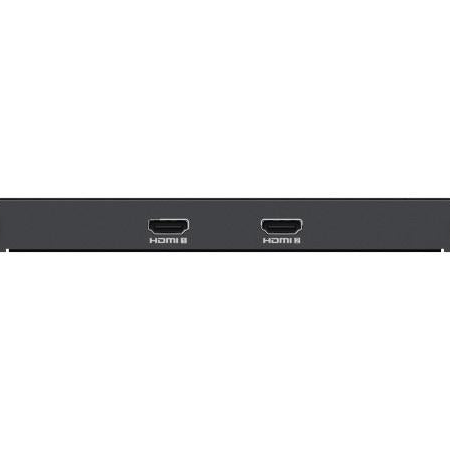

Hikvision DS-C60S-02HO/4K HDMI Output Board(4K) Wall Controllers

• The 4K HDMI output board supports YUV 444 output and 2 channels of 4K 30 fps HDMI output or 1 channel of 4K 60 fps HDMI output.
• Supports composite audio output.

Specification

• Chassis
• Occupied SlotOutput slot

• Video Output
• Video Output Interface TypeHDMI 2.0
• Video Output Interfaces2
• Max. Video Output Resolution4K (Only odd-number ports support 4K@60Hz)
• Video Output Resolution

  4096 × 2160@60 Hz, 3840 × 2160@60 Hz, 4096 × 2160@30 Hz, 3840 × 2160@30 Hz,

  2560 × 1600@60 Hz, 2560 × 1440@60 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz

  Supports LED screen, custom resolution output, 60 Hz loading output, and 8.84 MP loading with width ranging from 144 to 8192 and height ranging from 144 to 4320.

• Loading Capacity for Video Output to LED

  Single mesh port with load 8840000,

  Width 144-8192;

  Height 144-4320;

• Audio Output
• Audio Output Interface TypeHDMI composite audio
• Audio Output Interfaces2
