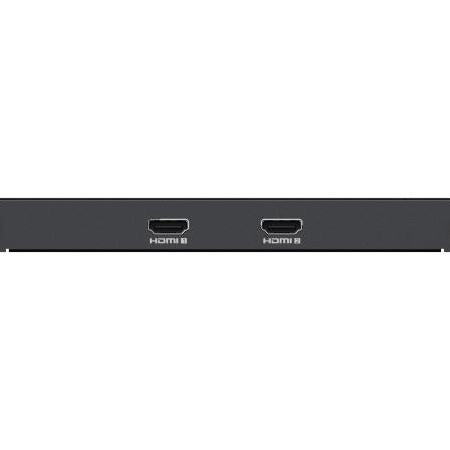

Hikvision DS-C60S-02HI/4K HDMI Input Board(4K) Video Wall Board

Hikvision DS-C60S-02HI/4K HDMI Input Board(4K) Video Wall Board

Out of stock

DS-C60S-02HI/4K

Login to see price
Login to see price Login to see price
Sale Sold out
Tax included.
  • Supports 2 channels of 4K HDMI signal input and YUV 444 collection.
  • Supports input resolution in the range of 1080p@60 Hz to 4096 × 2160@60 Hz and custom input resolution.

Specification

            • Chassis
            • Occupied SlotInput slot
            • Audio Input
            • Audio Input Interfaces2
            • Audio Input Interface TypeHDMI composite audio
            • Audio Sampling Rate32K / 48K sampling rate
            • Audio ChannelDual channel
            • Video Input
            • Video Input Interface TypeHDMI 2.0
            • Video Input Interfaces2
            • Max. Video Input Resolution4K
            • Video Input Resolution

              4096 × 2160@60 Hz, 4096 × 2160@30 Hz, 3840 × 2160@60 Hz, 3840 × 2160@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080p@60

              Custom resolution: width ranges from 800 to 8192, height ranges from 600 to 8192. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1920 × 1080 to 4096 × 2160. When configuring 60 Hz frame rate, the resolution ranges from 800 × 600 to 4096 × 2160.
