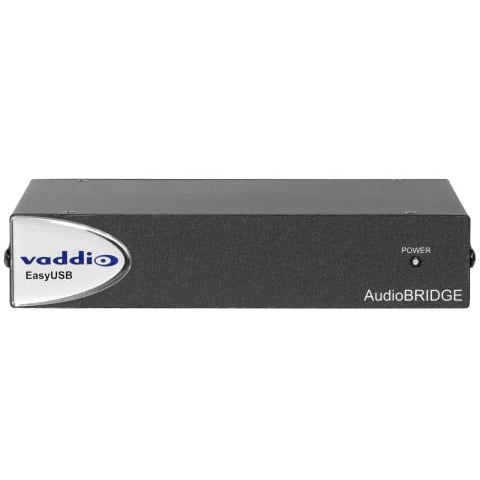

Chief Easy USB Audio BRIDGE

Professional audio USB interface for connecting existing audio equipment to USB-Based PC applications.

Key Features:

• Balanced Line Input: Mono line level (+4dB) input on 3-Pin Euro terminal mapped to the USB record channel
• Unbalanced Line Input: Mono consumer level input (-10dB) on RCA mapped to the USB record channel
• Balanced Line Output: Mono line level output on 3-pin Euro mapped to the USB playback channel
• Unbalanced Line Output: Mono consumer level output on RCA mapped to the USB playback channel
• USB Audio: UAC compliant Speakerphone with configurable terminal type for use with PC-based soft client

The EasyUSB AudioBRIDGE for integrating professional audio equipment into USB-based PC applications – Unified Communications, lecture capture, recording or any other application that requires professional audio. Existing meeting room audio equipment can now be used with any UC soft client – Microsoft Lync, Cisco Jabber, Google+, etc.

Equipped with both balanced and unbalanced audio inputs/outputs for maximum flexibility, the AudioBRIDGE easily integrates with external audio mixers, wireless microphones, amplifiers, powered loudspeakers – any audio I/O devices that require USB integration.

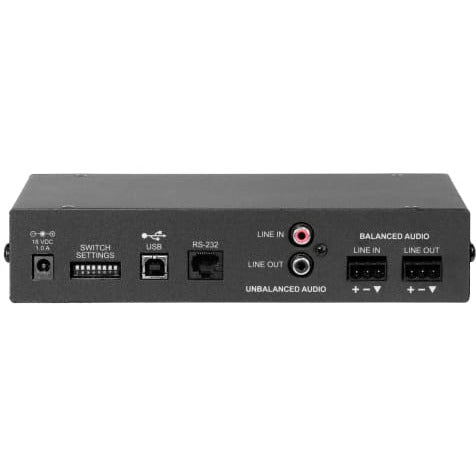

Professional audio equipment connects to the AV Bridge with balanced line level inputs/outputs on a 3-pin Euro Terminal block. Unbalanced audio inputs/outputs are supported with RCA connectors.

This Package Includes:

• EasyUSB AudioBRIDGE Interface
• Quick-Start Guide
• 18V, 1.0A Power Supply
• 2 qty 3-position phoenix-style connectors
• 4 qty rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted
• 6' (1.83m) USB 2.0 cable, type A to B
• EZ Camera RS-232 Control Adapter

Specifications for EasyUSB AudioBRIDGE
