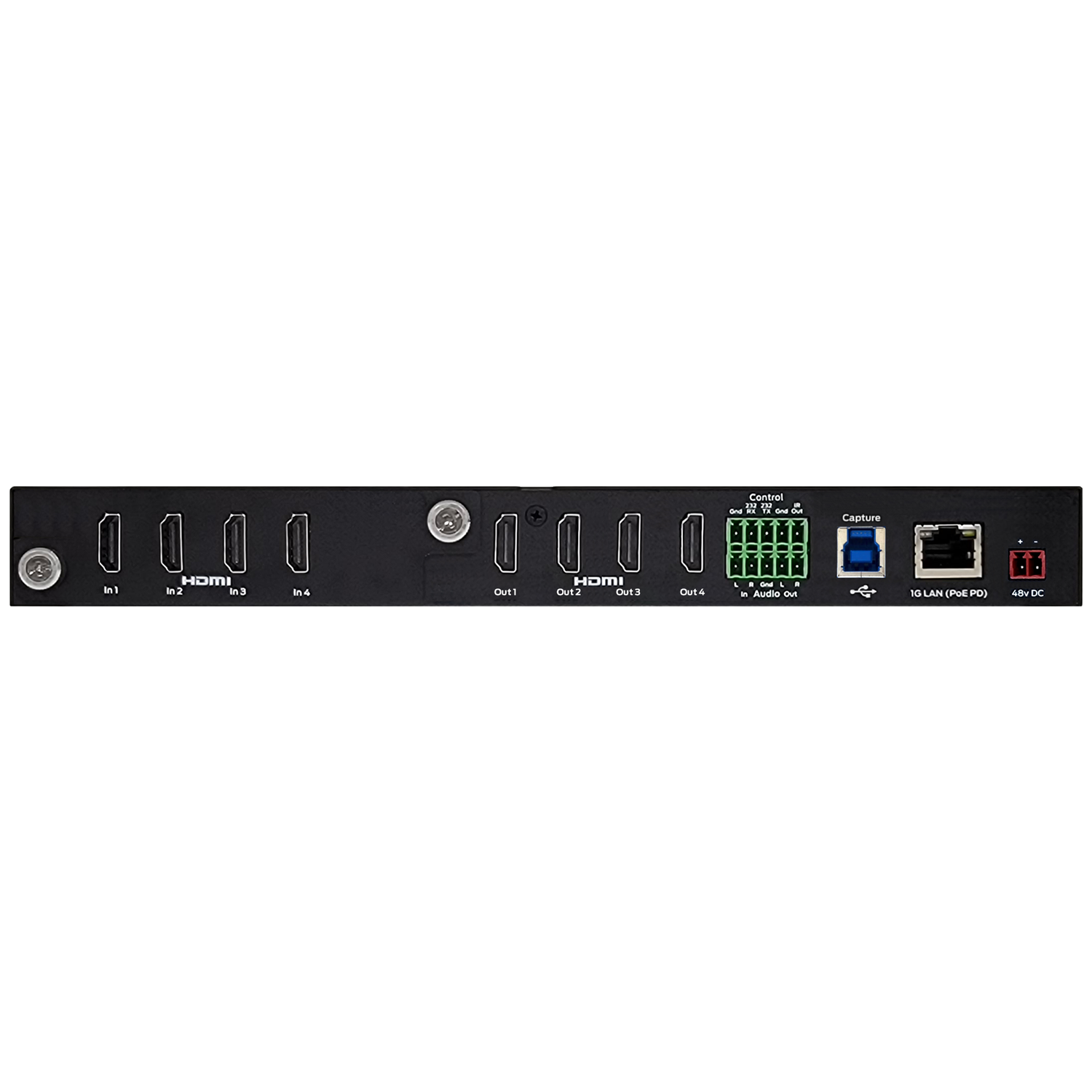

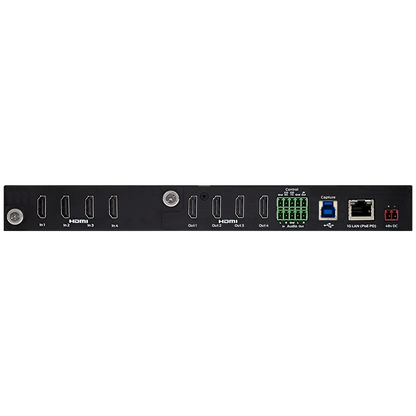

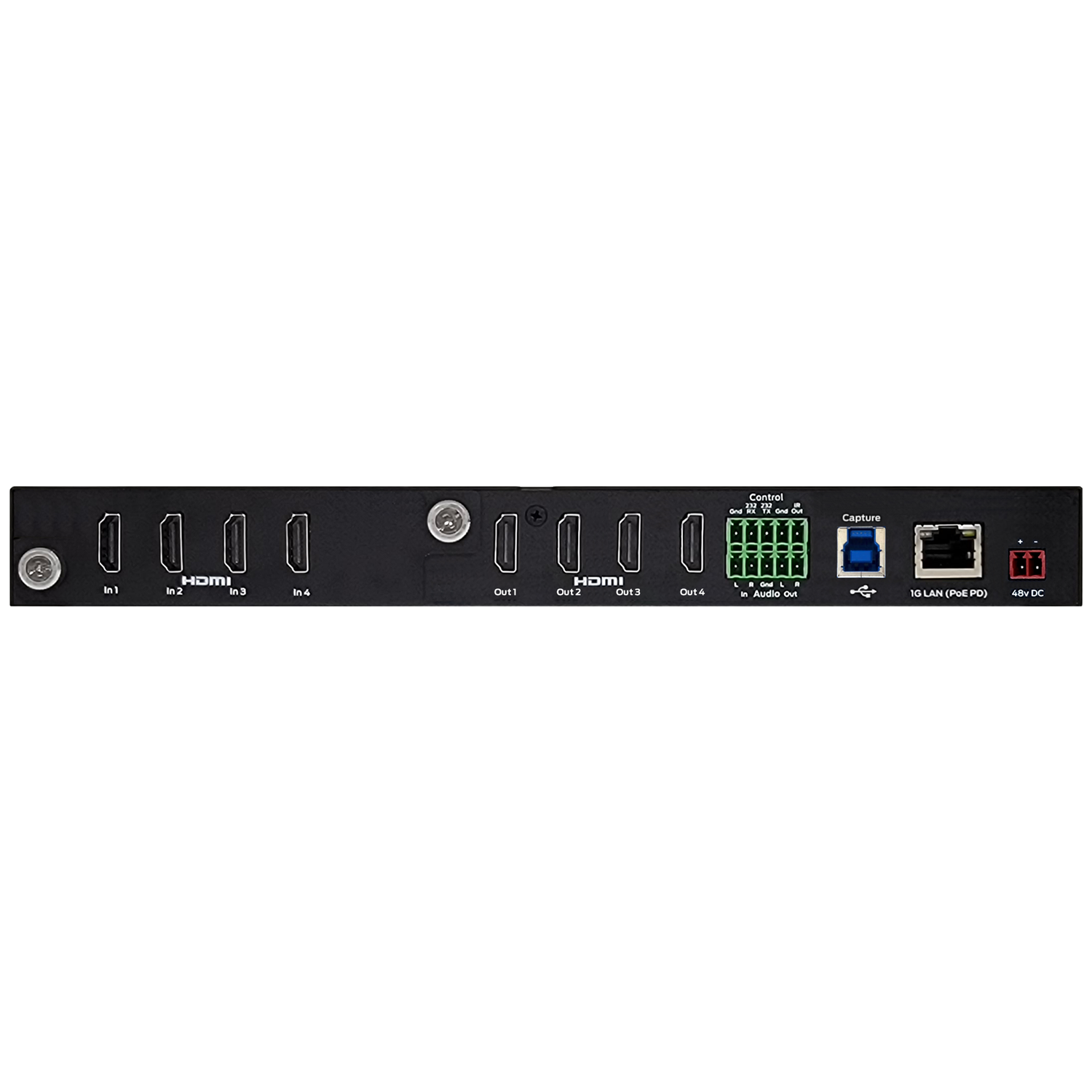

Aurora Multimedia DIDO-X4 4x4 Scaler Matrix Processor with USB Capture Output

Aurora Multimedia DIDO-X4 4x4 Scaler Matrix Processor with USB Capture Output

Out of stock

DIDO-X4

Login to see price
Login to see price Login to see price
Sale Sold out
Tax included.

The DIDO X4 is one of the most advanced 4x4 scaler on the market. The input card slot has a pre-installed 4 input HDMI card with future cards to come addressing various needs. These inputs can be routed to any of the four HDMI outputs with a quad scaler processor and advanced features. These features consist of contrast edge blending for side-by-side projectors (2 Outputs), 1 degree image rotation for portrait and jigsaw puzzle mode videowalls (1-2 Outputs), chroma keying for overlaying of sources on top of others, and pattern generation for signal integrity diagnosing. In addition, the DIDO X4 can seamlessly switch and window 4 sources any size anywhere on the display. Another amazing feature is the built-in USB 3.1 capture output for a PC making interfacing to Zoom Rooms, Teams, etc. even easier.

Control can be sent to the 1G Ethernet port which also has built-in webpage setup support.

Choice is important. That’s why the DIDO X4 is the ultimate 4x4 video processor product on the market today.

Benefits

The DIDO X4 is many devices in one product providing not just the ultimate experience but the ultimate value.

Here is why:

  • Video Effects Processor (Contrast Edge Blending (2 Outputs), Chroma Keying, Image Rotation, Bitmap OSD)
  • Windowing up to 4 sources locally to any of the 4 outputs
  • Video wall Processor with 1 Degree Image Rotation (1-2 Outputs)
  • Dante/AES67 Option
  • Pattern Generator
  • USB3.1 Capture Output for a Computer (Zoom Room, Teams, WebEx, etc.)

Features

  • Video Wall Capability, Image Rotation (1 Output 1 Deg or 2 Outputs 90 Deg Increments), Edge Blending (2 Outputs), Chroma Keying
  • Built-in Pattern Generator
  • Bitmap & Character Based OSD for Inputs and Output Channels
  • Windowing/Multi-viewer
  • Four HDMI Outputs with Independent Scaling
  • Seamless Switching
  • Audio Processing
  • 10/100/1000Mbps LAN PoE+ (PD)
  • Input Boards (4 HDMI)
  • Line In/Out Stereo
  • RS-232 Serial Port and IR (Bidirectional)
  • Integrated Web Server for Custom Control Pages
  • Dante®/AES67 IP 2Ch Audio (Optional)
  • Front Keypad with OLED Display
  • Auto Sense Switching
  • Rack and Under Table Mounting
  • Warrenty: 60 Months

Technical

Video Inputs Four HDMI 2.0 (ICS-H4 Input Card)
HDMI Outputs Four HDMI 2.0
Analog Audio Stereo Line In/Out
1G LAN RJ-45 10/100/1000M PoE
USB USB 3.1 Type B (4K30 4:4:4 Max Resolution)
Video Bandwidth 600MHz
Video Support Up to 4K2K 4:4:4 @60Hz
Audio Support Up to 32 channels & Break-away Capable
RS-232 Up to 115k Baud
IR 30KHz-60KHz
Expansion Ports Dante®/AES67
Interface IR or Keypad for OSD and OLED, Webserver

Scaler

Bandwidth 4K60 4:4:4
Scaling Processors Quad Scaler Processors
Effects Image Rotation, Videowall, Windowing, OSD, Edge Blending, Chroma Keying
Pattern Generator Color Bar, Moving Pattern, Hash, & More

Mechanical

Housing Black Aluminum Enclosure
Dimensions [L x W x H] 10.5" x 8" x 1.22"
Weight 2lb 4.6oz (1.04kg)
Mounting Rack mount (optional) and included under table/wall mount
Power Supply 25 Watts 48VDC or PoE+ (LAN)
Max Power Consumption 25 Watts
Operating Temperature 0~40ºC [32~100ºF]
Storage Temperature -20~60ºC [-4~140ºF]
Relative Humidity 20~90% RH [no condensation]
